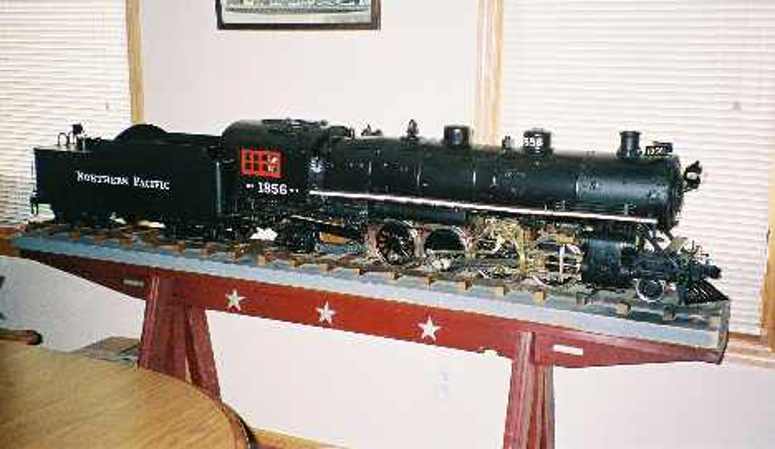

Locomotive Number: NP1856
1907 Number: 1856
Wheel Type: 2-8-2
Type Name: Mikado
Class: W-5
Builder: ALCO Schen
Year Built: 1923
Construction Number: 64369
Railroad: Northern Pacific Railway
Disposition: Scrapped July 1957
at Brainerd Shops
Locomotive Class W-5
Engine Numbers: 1835 - 1859
Class Size: 25
Wheel Type: 2-8-2
Builder: Alco Schenectady
Built Date: 1923
Construction No: 64369
Cylinder: 28x30
Driver Diameter: 63
Boiler Pressure: 200
Grate Area: 70
Tractive Power: 63,460
Booster Power: 11780
Adhestion Factor:
Valve Gear: Walschaert Superheater: Schmidt
Weight on Drives: 251,200
Engine Weight Working: 342,800
Engine Total Empty: 302,900

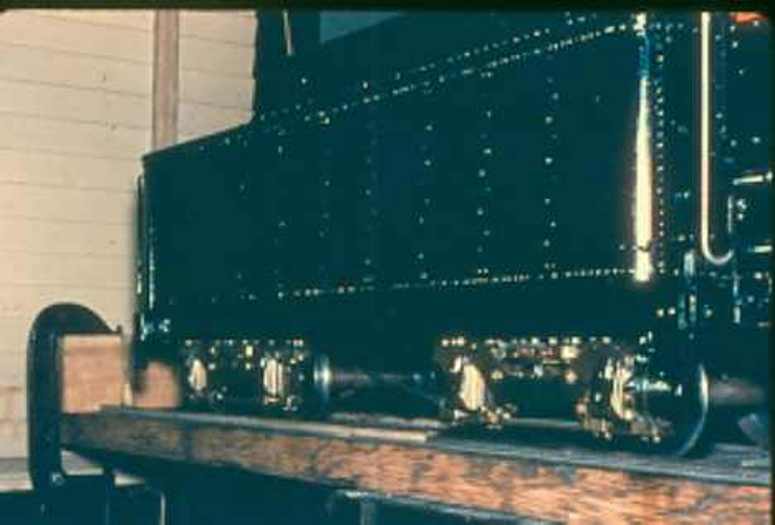

Tender Weight Working: 202,300
Tender Weight Empty: 87,000
Tender Class: 35E
Water Cap: 10,000
Coal Oil Cap: 16
| |

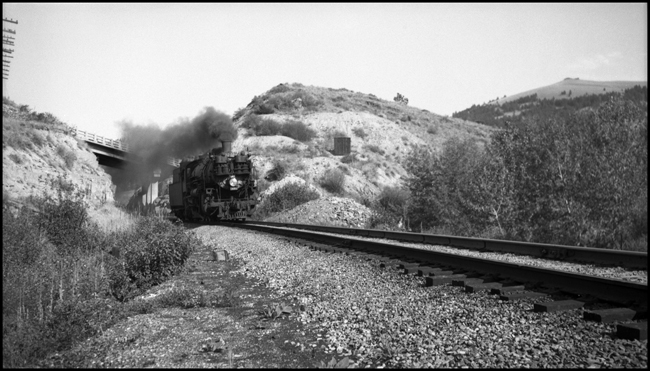

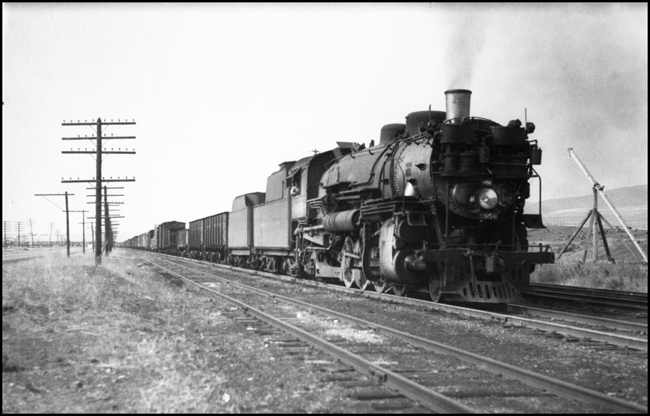

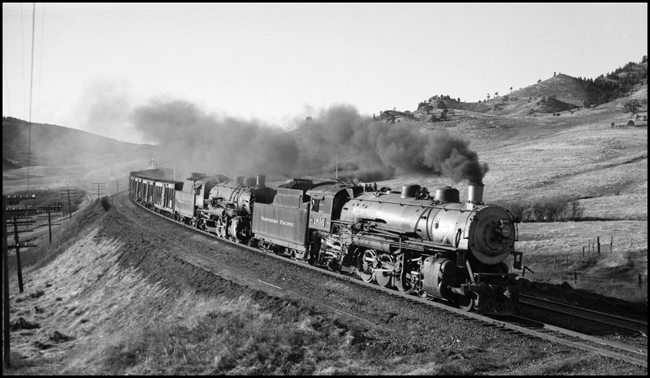

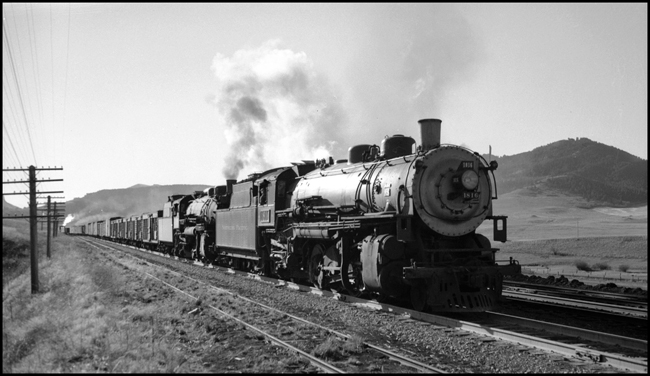

DeSmet, MT - Oct 01, 1939
West End, MT - Oct 18, 1941
Muir, MT - Oct 18, 1941
Blossburg,MT Sept 27, 1943 |
|
|
